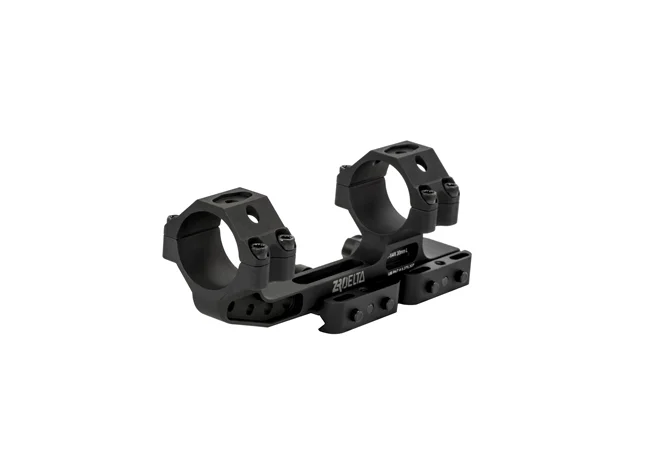

One piece, two ring 0 or 20 MOA 30,34, or 35mm scope mount machined from 6061-T6 aluminum and type III anodized matte black. Uses the DLOC mounting system for quick detach and static mounting, and provides return to zero capabilities.
Features/Benefits –

• One piece, precision machined body
• 0 or 20 MOA
• Cantilever body
• Scope will maintain zero if taken off for storage or other purposes, providing true ‘Return to Zero’ accuracy when re-attached
• DLOC system utilizes sixteen (16) engagement points with six (6) recoil lugs allowing our mount to grab more rail than any other mount on the market
• Heavy duty springs allow for solid retention as well as one handed manipulation
• The extreme grip by the DLOC mount allows user to only hand tighten retention knobs or torque to spec
• Designed to allow for quick detachment/attachment
• Tightening knobs allow for hand tightening to rail without worry of mount integrity
• If scope needs to be removed, hand tightening knobs allows for quick detachment to access back up sighting system or secondary optic

For 30mm scope tubes

• Weight - 0.44lb

• Material - 6061-T6 aluminum

• Finish - Type III Class 2 hard coat anodize black

• Dimensions - 6.25" x 2.00" x 2.45" (LxWxH)

• Inner ring distance - 3.08"

• Outer ring distance - 4.98"

• Ring cap length - 0.95"

• Centerline above rail - 1.50"

• MOA - 0

• Ring cap screws - T25 torx - quantity of 8

For 34mm scope tubes

• Weight - 0.44lb

• Material - 6061-T6 aluminum

• Finish - Type III Class 2 hard coat anodize black

• Dimensions - 6.25" x 2.00" x 2.45" (LxWxH)

• Inner ring distance - 3.08"

• Outer ring distance - 4.98"

• Ring cap length - 0.95"

• Centerline above rail - 1.50"

• MOA - 0

• Ring cap screws - T25 torx - quantity of 8

For 35mm scope tubes

• Weight - 0.44lb

• Material - 6061-T6 aluminum

• Finish - Type III Class 2 hard coat anodize black

• Dimensions - 6.25" x 2.00" x 2.45" (LxWxH)

• Inner ring distance - 3.08"

• Outer ring distance - 4.98"

• Ring cap length - 0.95"

• Centerline above rail - 1.50"

• MOA - 0

• Ring cap screws - T25 torx - quantity of 8
